SKF Industrial Division
System 24 LAGD 10 Pack Single Point Automatic Lubricators
$579.29
SKU: SKF-LAGD 125/EM2
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads

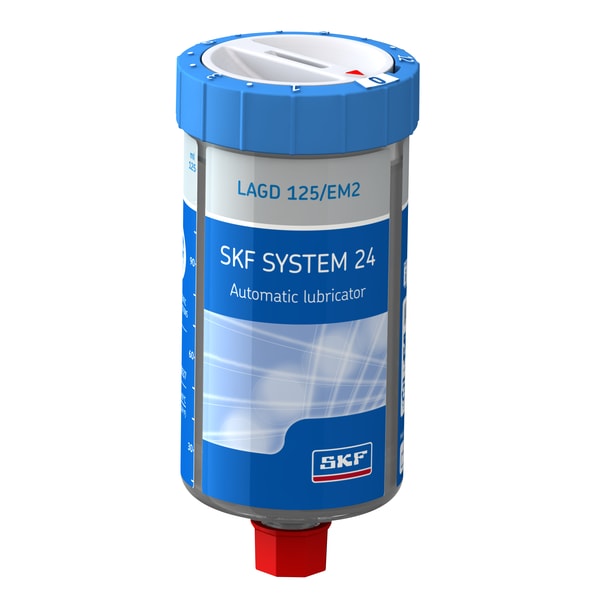

Gas driven single point automatic lubricators ~ SKF SYSTEM 24
The units are supplied ready-to-use straight from the box and filled
with a wide range of high performance SKF lubricants. Tool-free
activation and time-setting allow easy and accurate adjustment of
lubrication flow.
- Flexible dispense rate from 1 to 12 months
- Stoppable or adjustable if required
- Intrinsic safety rating: ATEX approved for zone 0
- Transparent lubricant container allows visual inspection of dispense rate
- Compact size, permits installation in restrictive areas
- Greases and chain oils available
- SKF DialSet software helps to calculate the correct dispense rate
- Extensive range of accessories.
 |
Typical Applications include:
|
Ordering Details:
| Designation |
Description |
| LAGD 125/WA2 | 125 ml (4.25 fl oz. US) unit filled with LGWA 2 grease (multipurpose EP type) |
| LAGD 60/WA2 |
60 ml (2.03 fl oz. US) unit filled with LGWA 2 grease (multipurpose EP type) |
|
LAGD 125/EM2 |
125 ml (4.25 fl oz. US) unit filled with LGEM 2 grease (high loads/slow rotations) |
| LAGD 125/FP2 | 125 ml (4.25 fl oz. US) unit filled with LGFP 2 grease (food processing industry) |
| LAGD 125/GB2 | 125 ml (4.25 fl oz. US) unit filled with LGGB 2 grease (biodegradable, low, toxicity) |
| LAGD 125/HB2 | 125 ml (4.25 fl oz. US) unit filled with LGHB 2 grease (high temperature, loads, plain bearing) |
| LAGD 125/HP2 | 125 ml (4.25 fl oz. US) unit filled with LGHP 2 grease (high performance polyurea) |
| LAGD 125/HFP15* | 125 ml (4.25 fl oz. US) unit filled with HFP150 oil (food processing, viscosity ISO150) |
| LAGD 125/HHT26* |
125 ml (4.25 fl oz. US) unit filled with HHT265 oil (synthetic high temperature chain oil, viscosity ISO 265) |
| LAGD 125/HMT68* | 125 ml (4.25 fl oz. US) unit filled with HMT68 oil (mineral EP type chain oil, viscosity ISO 68) |
| LAGD 60/HMT68* | 60 ml (2.03 fl oz. US) unit filled with HMT68 oil (mineral EP type chain oil, viscosity ISO 68) |
| * Includes non-return valve |
Specifications
Grease capacity
| LAGD 125 | 125 ml (4.25 fl oz. US) |
|---|---|
| LAGD 60 | 60 ml (2.03 fl oz. US) |
| Nominal emptying time | Adjustable; 1 - 12 months |
| Ambient temperature range | -20 to 60 °C (-5 to 140 °F) |
| Maximum operating pressure | 5 bar (75 psi) |
| Drive mechanism | Gas cell producing inert gas |
| Connection thread | G 1/4 |
Maximum feed line length
| Grease | 300 mm (11.8 in) |
|---|---|
| Oil | 1 500 mm (59.1 in) |
Intrinsically safe approval
| II 1 | GD EEx ia II C T6 T85 °C |
|---|---|
| I M 1 | EEx ia I |
| Protection class | IP 68 |
| Recommended storage temperature | 20 °C (70 °F) |
| Storage life of lubricator | 2 years |
Weight
| LAGD 125 | approx 200 g (7.1 oz) |
|---|---|
| LAGD 60 | approx 130 g (4.6 oz) |
