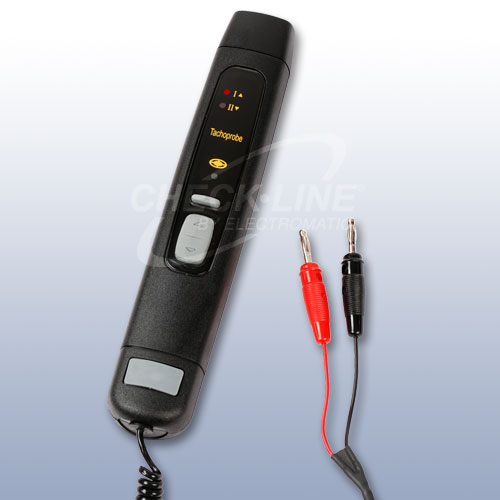

A2108 Hand-Held Optical Tachometer with Analog Output
$520.00
SKU: ELE-A2108
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
Tachometer with Analog Output
3 Models
A2108: Basic Model with Voltmeter Plugs
A2108/LSR: Adds laser light source, Remote On / Off, Tripod Mount
A2108/LSR/232: RS232 Output, laser light source
A2108: Basic Model with Voltmeter Plugs
A2108/LSR: Adds laser light source, Remote On / Off, Tripod Mount
A2108/LSR/232: RS232 Output, laser light source
The A2108 Non-Contact Tachometer converts RPM into an analog (voltage) output signal allowing you to use any Digital Multimeter, Data Acquisition System or Voltage Recorder as an RPM display. Optional Contact adapter allows you to measure contact RPM or surface speed.
The voltage output on the A2108/LSR Analogue Output version provides 1mv/rev = 6vdc @ 6000 rpm.
The A2108/LSR version is switched On manually, using the continuous mode feature. option, provided continuous measurement is taking place the Probe will remain in the ON mode. An Auto OFF feature provides shutdown if no activity is logged for 1 minute.
The voltage output on the A2108/LSR Analogue Output version provides 1mv/rev = 6vdc @ 6000 rpm.
The A2108/LSR version is switched On manually, using the continuous mode feature. option, provided continuous measurement is taking place the Probe will remain in the ON mode. An Auto OFF feature provides shutdown if no activity is logged for 1 minute.
The A2108/LSR/232 Laser Tachometer version provides direct serial data output to your PC, a serial cable & a CD with Logging software is supplied with this model. Note raw output is in hexadecimal format.
The A2108 comes supplied in a custom carrying case with AAA Batteries, Instruction Manual, Calibration certificate & reflective tape (3pcs, 3"x1")
Specifications
| Range | Range 1: 100 - 6,000RPM
Range 2: 1,000 - 60,000 RPM |
|---|---|
| Resolution | +/- 1.5mV |
| Accuracy | +/- 0.5% |
| Light Source | A2108: Tungsten Filament
A2108/LSR Laser Class II 635nm |
| Optical Range | A2108: 50 - 1000 mm
A2108/LSR: Up to 2m (6ft) |
| Range Select | Up Arrow = I
Down Arrow = II |
| Carry Case | Included |
| Contact Adapter | Optional |
| Voltage Output | 0.1 - 6 V DC, Both Ranges |
| On Target Indicator | Green LED |
| Power | 4 x AAA batteries - supplied |
| Battery Life | 10 hours, continuous use |
| Connections | A2108: Coiled cable with 2 x 4mm plugs fitted
A2108/LSR: Binder connector + 1m cable |
| Mounting | Tripod bushing included on A2108/LSR only |
| Update time(A2108-LSR) | Time of one rev or 1millisecond |
| Zero offset(A2108-LSR) | Max. 6mV Analogue version |
| Controls(A2108-LSR) | 2 x Press to Measure buttons
One Continuous Mode button |
| Controls | On, Invert, Capture, Ratio(A2108-LSR-RS232) |
