Electromatic

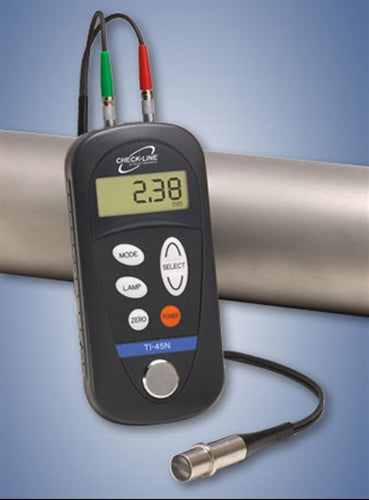

TI-45NA Ultrasonic Wall Thickness Guage
$1,295.00
SKU: ELE-TI-45NA
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
TI-45NA Measuring Range in Steel
0.040 - 8.00 inches
1.00 - 200.0 mm
The CHECK-LINE TI-45NA Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The attractive, ergonomic housing design is extremely compact, lightweight and rugged. It fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas.
Features:
Complete Kit:
Measuring Limits:
Minimum Radius for Convex Surfaces: 1" (27 mm)
Minimum Radius for Concave Surfaces: 3" (76.2 mm)
Minimum Headroom: 3" (76.2 mm)
Minimum Sample Diameter: 0.5" (12.7 mm)
Minimum Substrate Thickness - F: na
Minimum Substrate Thickness - NFe: na
Specifications:
0.040 - 8.00 inches
1.00 - 200.0 mm
The CHECK-LINE TI-45NA Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The attractive, ergonomic housing design is extremely compact, lightweight and rugged. It fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas.
Features:
- TI-45NA includes new Pipe Mode for stable measurement on small diameter pipe (1" and larger)
- Resolution of 0.001" (0.01mm)
- Extremely small & lightweight operates from a single AA battery
- Switch-selectable units - inches or mm
- Built-in calibration test plate
- Quick display update with last reading retained on the display
- Display symbols alert user to poor coupling and low battery conditions
- User Adjustment of Acoustic Velocity or selection 10 preset velocities
Complete Kit:
The TI-45NA is supplied as a complete kit with the gauge and wrist
strap, probe and cable assembly, 2 oz. bottle of coupling fluid, battery
and instruction manual -- all supplied in a fitted, hard plastic
carrying.
Measuring Limits:
Minimum Radius for Convex Surfaces: 1" (27 mm)
Minimum Radius for Concave Surfaces: 3" (76.2 mm)
Minimum Headroom: 3" (76.2 mm)
Minimum Sample Diameter: 0.5" (12.7 mm)
Minimum Substrate Thickness - F: na
Minimum Substrate Thickness - NFe: na
Specifications:
| Range in Steel | 0.040 - 8.000" (1.0 - 200.0 mm) |
| Resolution | .001" (0.01 mm) |
| Display | 4½ - digit LCD display, 0.39" (10mm) high with push button illumination |
| Velocity Range | 1,000 - 12,000 m/sec, continuously adjustable |
| Probe | 5 MHz, .39" (10 mm) diameter without Centering Shell |
| Cable | 39" (1m) 2-wire, long cable with quick-disconnect connectors |
| Minimum Pipe Size | 1" nominal (27mm) steel pipe, wall thickness starting at 0.060" (1.50 mm) |
| Temp. Limits | Ambient: 25 to 125° F (-5 to 50° C) Material: -15 to 140° F (-10 to 60° C) |
| Calibration Plate | 0.200" (5.00mm) steel plate, built into the front of the housing |
| Battery Type | 1x AA battery |
| Battery Life | 200 hours |
| Weight | Gauge: 7 ounces (200 g) |
| Size | 5.2" x 2.7" x 1.1" (131 x 68 x 29 mm) |
| Warranty | Gauge: 1 years Probe: 90 days |
| Accessories Included | Fitted, hard-plastic carrying case, probe shell attachment, 2 oz. bottle of coupling fluid, 1 spare battery and operating instruction guide |
Contact us at (214) 238-0493 for full specifications.
