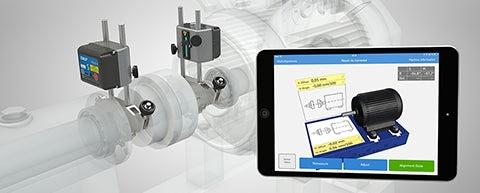

TKSA 51 Laser Shaft Alignment Tool for Use with Smart Phones and Tablets
$8,214.47
$17,455.74
SKU: SKF-TKSA-51
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
TKSA 51 Wireless Laser Shaft Alignment for use with Tablets and Smart Phones. The TKSA 51nmobile app includes tutorial videos to show
operators how to perform accurate measurements.
Specifications
TKSA 51 Technical Specifications
| Sensors and Communication | 20mm (0.8 in), PSD with redline laser class II, electronic inclinometer ± 0.1°, Bluetooth 4.0 LE |
|---|---|
| System measuring distance | 0.07 to 5m (0.23 to 16.4 ft) |
| Measuring errors / Displayed resolution | < 1% + 1 digit |
| Compatible operating devices* | iPad Mini recommended. iPad 3rd Generation or above, iPod Touch 5th Generation or above, iPhone 4S or above |
| Operating system requirements | Apple IOS 8 or above. |
| Software / App updates | Via Apple App Store |
| Shaft Diameters | 20 to 150 mm (0.8 to 5' 9in), up to 450 mm (17.7 in.) with extension chains supplied |
| Max. recommended Coupling Height | 170 mm (6.7 in) with extension rods |
| Alignment measurement | 3X positions free measurement (min. 40° total angle), automatic measurement |
| Alignment Correction | Live values for vertical and horizontal machine position correction. Adjustable shocks compatible (Vibracons) |
| Soft Foot Correction | Available with separate "Soft Foot for TKSA 51" App on Apple App Store |
| Alignment Report | Automatic .pdf report exportable via email/cloud services |
| Display Orientation | Landscape (plus Portrait on Tablets) |
| MU Battery | Up to 10 hours continuous operation (2,000 mAh rechargeable Li-ion Battery) |
| Carrying Case Dimensions | 355 x 250 x 110 mm (14 x 9.8 x 4.3 in) |
| Total weight including case | 2.9 kg (6.5 lbs) |
| Operating temperature | 0 to 45° C (32 to 113° F) |
| IP Rating | IP54 |
| Calibration Certificate | Included, 2 years validity |
| Warranty | 2 year standard warranty + additional year upon registration |
