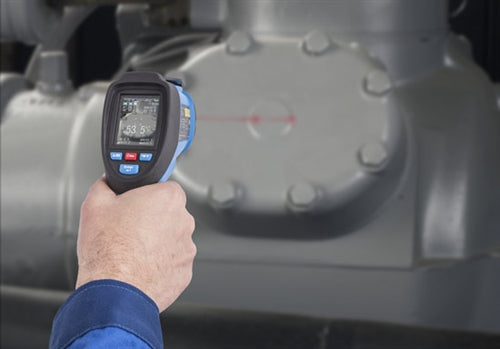

TKTL 40 Dual Laser Infrared and contact Video thermometer

The SKF TKTL 40 is a portable, lightweight, multi- functional instrument for measuring temperatures at a safe distance. Simply aim and pull the trigger and the temperature is shown on the display. Users can also measure contact temperatures using the probe supplied. This feature rich instrument also can take pictures and videos which show the temperature measurements. In addition, a number of environmental properties can also be measured and displayed.

Wide infrared temperature measurement range from –50 to +1 000 °C (–58 to +1 832 °F) Contact temperature measurement range from –50 to +1 370 °C (–58 to +2 498 °F) Built-in camera allows pictures and videos, with all measurement information to be taken, stored, recalled and exported to PC Environmental properties such as ambient, dew point and wet-bulb temperatures, as well as relative humidity, can be displayed and stored Dual laser sighting defines the temperature measurement area Distance-to-spot ratio of 50:1 allows accurate temperature readings at long distances or for measuring temperatures of small areas User selectable variable emissivity between 0,1 and 1,0 allows most surface temperatures to be measured Supplied with temperature probe TMDT 2-30 (max. 900 °C/ (1 652 °F) for direct contact applications. Can also be used with any other SKF temperature probe User selectable, multiple temperature measurement modes including: maximum, minimum, average, differential and probe/infrared dual display Data logging function can be used to visualise temperature changes over time User selectable high and low alarm levels with audible warning signal User selectable auto shut off feature optimises the rechargeable battery life

TECHNICAL DATA

Designation	TKTL 40
Temperature range using infrared	–50 to +1 000 °C (–58 to +1 832 °F)
Temperature range using probe	–50 to +1 370 °C (–58 to +2 498 °F)
Probe supplied	TMDT 2-30 included max. 900 °C (1650 °F)
Distance-to-spot ratio	50:1
Emissivity	0,1-1,0
Measurement accuracy	±1% of reading or 1 °C (1.8 °F) whichever is greater
Operating temperature	0 to +50 °C (32 to +122 °F) 10 to 95% R.H.
Storage	–10 to +60 °C (14 to +150 °F) 10 to 95% R.H.
Respons time msec	<300
Displayed resolution	0.1 °C/F (below 999.9); 1 °C/F (above 1000)
Display	Colour backlit LCD
Spectral response	8–14 µm
Measurement modes	Maximum; Minimum; Average; Difference (between min and max); Probe/IR dual temperature
Alarm modes	High and low level alarm with warning sound
Laser	2x red targeting laser dots, Class 2
Operating time	Min. 4 hours continuous use
Auto switch off	Automatic, user selectable
HVAC functions	Wet bulb; Dew point; Humidity; Air temperature
Photo and video	640x480 px visual camera, images (JPEG) and video (3GP)
Memory	310 MB internal memory; expandable with micro SD card (8 GB max.)
PC connection	Mini USB port, mini USB to USB cable included
Contents	1x IR thermometer (TKTL 40); 1x Temperature probe (TMDT 2-30); 1x AC battery charger; 1x Mini USB to USB connection cable 1x Mini tripod 1x Instructions for use; 1x Carrying case
Product dimensions	205 x 155 x 62 mm (8.1 x 6.1 x 2.4 in)
Packing dimensions	530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in)
Product weight (incl. batteries)	600 g (1.3 lb)
Total weight	1 700 g (3.8 lb)
