TMHS 75 Hydraulic Spindle for EasyPull
$746.21
SKU: SKF-TMHS 75
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads

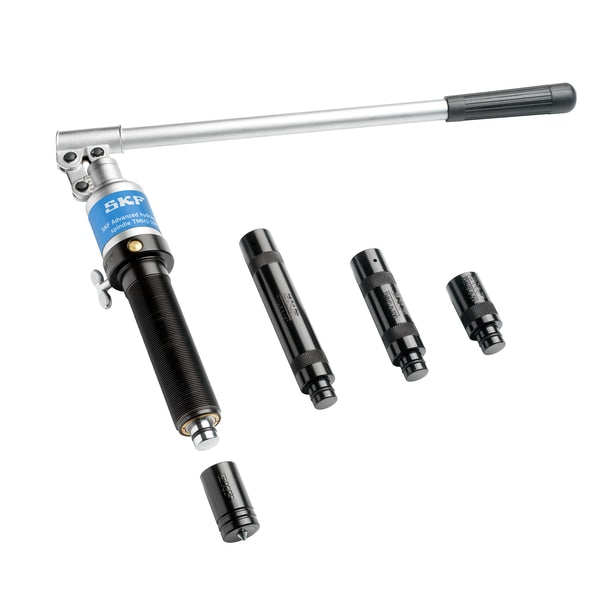

SKFTMHS 75 Hydraulic Spindle
The SKFTMHS 75 hydraulic spindle generate a high pulling force with very little effort compared to the standard mechanical spindles. They dramatically reduce the time needed to dismount a bearing or other component. The spindles are equipped with integrated hydraulic pumps for force generation. Maximum pulling forces are limited by special safety valves and the hydraulic oil will remain inside the pump
Features
- Integrated hydraulic cylinder, pump and spindle - no separate pump is required
- Safety valve helps prevent overloading the spindle and the puller in case excessive force is applied
- Spring-loaded center point in the nosepiece allows easy centring of the puller on the shaft without damaging shaft center
- Hand lever with ergonomic grip can be rotated 360°
- Hardened and chrome plated piston with spring return function
- Extension pieces included allows easy adaptation for the required pulling length
What's Included:
- 1 × Hydraulic spindle
- 2 × Extension pieces
- 1 × Nosepiece
Specifications
| Technical data | |
| Extension Pieces Measurement(2 Pieces) | 50 and 100 mm(2.0 and 3.9 in.) |
| Maximum withdrawal force | 75 kN (8,4 ton US) |
| Piston stroke | 75 mm (3.0 in.) |
| Body thread | UN 11/4 × 12 |
| Nose piece diameter | 35 mm (1.4 in.) |
| Maximum reach | 229 mm (9.0 in.) |
| Weight | 2.7 kg (6.0 lb) |
| SKF force generator selection | |
| Standard with puller | TMMA 75H |
| Accessory for puller | TMMA 80 |
Contact us at (214) 238-0493 for full specifications.
