TM Induction Heating US Inc.
EASYTHERM 1
$2,170.00
SKU: 102211
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns

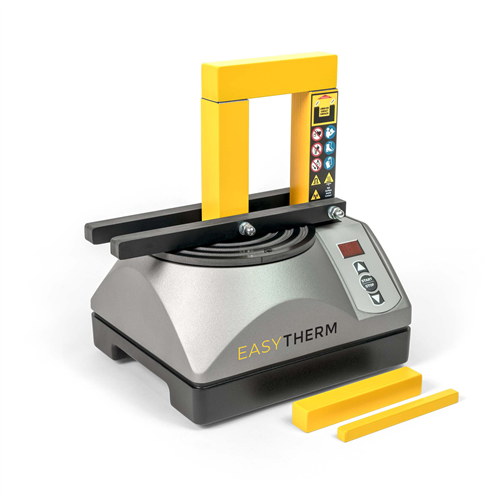

The Easytherm 1 is the compact entry-level model in TM Induction Heating’s Easytherm series, built for fast and controlled heating during bearing installation. It is designed for smaller bearings and other parts, and heats workpieces up to 10 kg with a maximum outer diameter of 230 mm (vertical) / 160 mm (horizontal).
Supplied with a one-piece magnetic temperature probe and yokes 10 × 10, 20 × 20 and 30 × 26 mm.
Specifications
Electricity
| Power rating | 2.3 kVA |
|---|---|
| Voltage | 115 – 230 V |
| Current max. | 10.0 A |
| Frequency | 50 – 60 Hz |
Workpiece max. weight
| Bearings and other parts | 10.0 kg |
|---|
Workpiece
| Min. bore vertical | ø15.0 mm |
|---|---|
| Min. bore horizontal | 44.0 mm |
| Max. outer diameter vertical | 230.0 mm |
| Max. outer diameter horizontal | 160.0 mm |
| Max. workpiece width | 65.0 mm |
| Max. temperature | 240.0 °C |
Weight
| Without yokes | 9 kg |
|---|
Dimensions
| L × W × H | 230 × 200 × 250 mm |
|---|
Controls
| Temperature | 0 – 240 °C |
|---|
Others
| Sound signal | Buzzer |
|---|---|
| Temperature hold | Yes |
| Demagnetizing | < 2 A/cm |
| Magnetic probe | One piece |
Warranty
| Warranty period | Max. 24 months |
|---|
