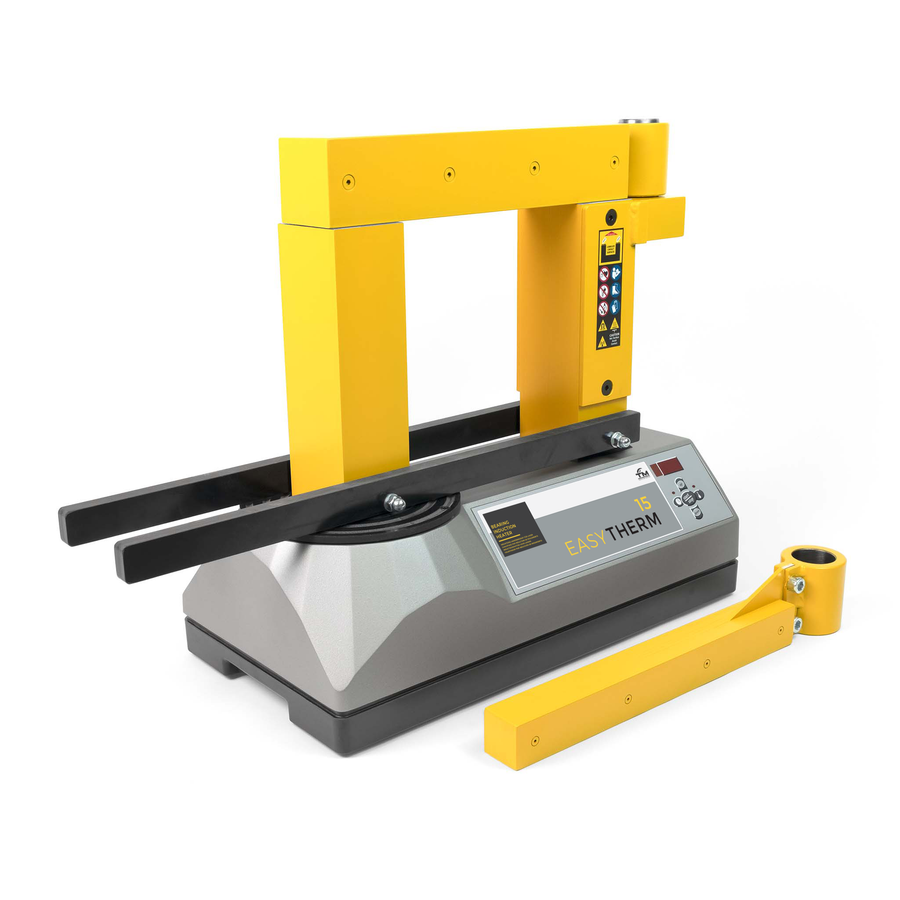

EASYTHERM 15
The Easytherm 15 is the heavy workshop model in TM Induction Heating’s Easytherm series, built for controlled heating during installation of larger bearings and other parts. It is designed for higher loads and larger diameters, supporting workpieces up to 150 kg with a maximum outer diameter of 490 mm.
Key functions include Temperature Mode with sensor control from 0°C to 240°C, plus Time Mode for repeatable cycles in production environments. Standard Auto Demagnetizing and Temperature Hold support a clean finish and stable temperature control when you need extra time for mounting.
Designed for demanding maintenance and production use, the Easytherm 15 stays robust, powerful, and easy to operate. It remains maintenance-free while staying suitable for sealed and shielded bearings, pre-greased bearings, and bearings with polyamide cages, so it fits a broad range of bearing applications at higher capacity.
The following yokes are included with Easytherm 15:
40 x 38, 70 x 70. Additional yoke sizes are listed in our Datasheet. A magnetic temperature sensor with a length of 1000 mm is included as well.
Specifications
| Power rating | 8.0 kVA |
|---|---|
| Voltage | 400 – 575 V |
| Current max. | 20.0 A |
| Frequency | 50 – 60 Hz |
| Max. weight | 150.0 kg |
|---|---|
| Min. bore (Vertical) | ø20.0 mm |
| Min. bore (Horizontal) | 108.0 mm |
| Max. outer diameter (Vertical) | 485.0 mm |
| Max. outer diameter (Horizontal) | 490.0 mm |
| Max. workpiece width | 210.0 mm |
| Max. OD with extension blocks | 885.0 mm |
| Max. temperature | 240.0 °C |
| Weight (without yokes) | 62 kg |
|---|---|
| Dimensions (L × W × H) | 505 × 260 × 400 mm |
| Temperature range | 0–240°C |
|---|---|
| Time mode | 99 min. : 59 sec |
| Temperature hold | Yes |
| Auto demagnetizing | < 2A/cm |
| Sound signal | Buzzer |
| Magnetic probe | One piece (1000 mm) |
| Standard yokes | 40 × 38, 70 × 70 |
|---|
| Warranty period | Max. 24 Months |
|---|
Shipping
| Carriers | UPS or FedEx for domestic orders; FedEx for international orders |
|---|---|
| Shipping cost | Calculated automatically at checkout for US orders. International orders require a complete ship-to address with postal code. |
| Freight terms | FOB shipping point, freight prepaid. Title passes to the buyer at the vendor's dock. |
| Hazardous items | Epoxy adhesives, batteries and paint markers cannot ship by air freight |
| International | Shipping fees do not include taxes, tariffs or duties |
Returns
| Return window | 7 calendar days from delivery. Contact us before returning any item. |
|---|---|
| Condition | New, unaltered and unused. Special and custom orders are not returnable. |
| Restocking fee | 15% on non-defective items that are not being exchanged |
| Full policy | Refund / Return Policy |
See our Shipping & Billing Terms for how estimated shipping is charged, and our Refund / Return Policy.
Questions about shipping on this item? Call (214) 238-0493 or contact us.
