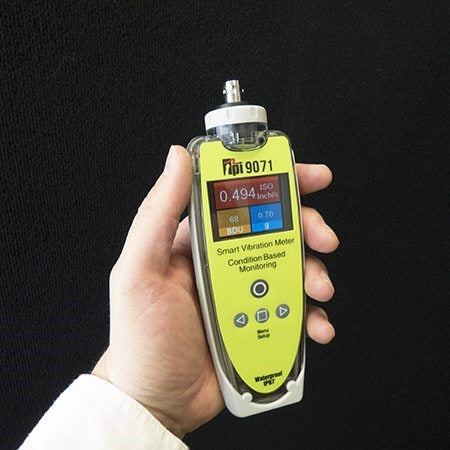

TPI-9071 Smart Vibration Meter with external sensor

The TPI 9071 analyzes & interprets readings: ISO machine alarms and BDU reading indicate overall machine and bearing condition; clear picture of machine problems detects imbalance, misalignment and looseness; 800-line spectrum with zoom and cursor to identify complex issues.

Collect and store test data. Storage space of 10 memory blocks with 20 readings per block available. Stored readings can be displayed for analysis.

Features:

Built-in ISO Alarms Find machine faults before they stop your machine Increase productivity and lower maintenance costs Full Color LED Display Collect data Standard Cable mounted accelerometer with magnet ISO built-in Alarms Easily identify bearing problems with BDU Reading

Easily identify problems with built-in band filters: 1X (unbalance) 2X (misalignment) 3X (looseness) 800 line FFT (spectrum) Ruggedized IP67 case 3-year Limited Warranty

Specifications:

Size:	7.95" x 2.36" x 1" (200 mm x 60mm x 26mm)
Weight:	9.8oz (280g) (not including magnet)
Environmental:	* Water: IP67 Waterproof * Operating: 32 °F to 122 °F (0 °C to 50 °C) * Storage: -4 °F to 158 °F (-20 °C to 70 °C)
Power Supply:	Two "AA" Batteries
Battery Life:	Approximately 50 hours of normal use
Frequency Ranges:	2/10Hz -1kHz ISO 2Hz -10kHz Total g 1kHz -10kHz Bearing Analysis
Frequency Resolution:	100 / 800 lines
Amplitude Units:	Acceleration in g Velocity in in/sec or mm per second Bearing Damage in BDU
Input Range:	+/- 50 g (with supplied accelerometer)
Dynamic Range:	72 dB (0.05g resolution)
Auto Setup of VA Alarms:	Yes
Measurement Storage:	10 blocks / 20 readings per block
Sensor Connection:	BNC connector cable with removable magnet (1mV/g to 10,000mV/g)
Supplied Accessories:	A9012 IEPE accelerometer with cable A9073 magnet A9074 Soft pouch
