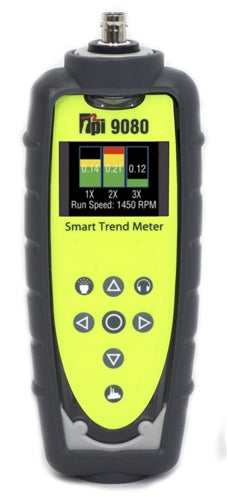

TPI 9080 Smart Trend Meter

The TPI 9080 is a simple, easy to use, low cost vibration meter that records, analyzes and displays vibration signals at the push of a button. Identify the vibration problem: unbalance, misalignment or looseness; in addition to the bearing condition. VibTrend standard software gives you greater ease of use and flexibility. Windows 7™ compatible.

• Store analyze and report on all your vibration parameters in one place;
up to 10 assets with 10 readings per asset standard; unlimited assets
with 10 readings per asset with optional A9084 VibTrend Pro software.

• All information is just a click away. Color coded alarms highlight problems.
Trend lines show problems before they happen.

Overall machine and bearing conditions: vibration values are displayed with color coded alarm levels for ISO values and Bearing Damage (BOU).



Identify complex issues: 800-line spectrum with zoom and cursor. Identify the vibration problem: unbalance, misalignment or looseness in addition to the bearing condition



• Find machine faults before they
stop your machine

• Increase productivity and lower maintenance costs

• Industry approved ear defenders with built-in Bluetooth headphones are
also available to let you listen to the bearing noise - or even listen to your
phone!

VibTrend standard software gives you the greater ease of use and flexibility. Windows7 compatible.

• Store, analyze and report on all your vibration parameters in one place; up to 10 assets with 10 readings per asset standard; unlimited assets with 10 readings per asset with optional A9084 VibTrend Software.
• All information is just a click away. Color coded alarms highlight problems. Trend lines show problems before they happen.

Featured Benefits:

• Collect Data
• Trend Data using VibTrend Software
• Standard cable mounted accelerometer with magnet
• Built in Bluetooth communication capability
• USB docking station to download to PC
• ISO built-in alarms
• Easily identify problems with built-in band filters
  • 1X unbalance, 2X misalignment, 3X looseness
• 800 line FFT (spectrum)
• Listen to bearing noise with optional Bluetooth headphones
• Rugged IP67 case
• 3 year Limited Warranty

The TPI 9080 Smart Trend Vibration Meter is the perfect instrument for many industries, such as Commercial and Industrial HVAC, Food Processing, Manufacturing, Mining, Packaging, Petrochemical, Refineries, Pulp and Paper, Power Plants, Utilities, Automotive and more.

Available in 3 versions:

TPI-9080 9080 Smart Vibration Trend Meter with A9089 BNC cable/sensor/magnet, VibTrend basic software, and A9087 carrying case.

TPI-9080-K1 Kit includes: 9080 Smart Vibration Trend Meter, A9081 docking cradle/USB & VibTrend Professional software, A9089 BNC cable/sensor/magnet, A9086 protective boot with magnets, 9082 BNC Strobe, and A9087 carrying case.

TPI-9080-K2 Kit includes: 9080 Smart Vibration Trend Meter, A9081 docking cradle/USB & VibTrend Professional software, A9089 BNC cable/sensor/magnet, A9086 protective boot with magnets, 9082 BNC strobe, A9088 wireless headphone, A9088 carrying case for A9080 and A9087 carrying case.
