Monarch Instrument

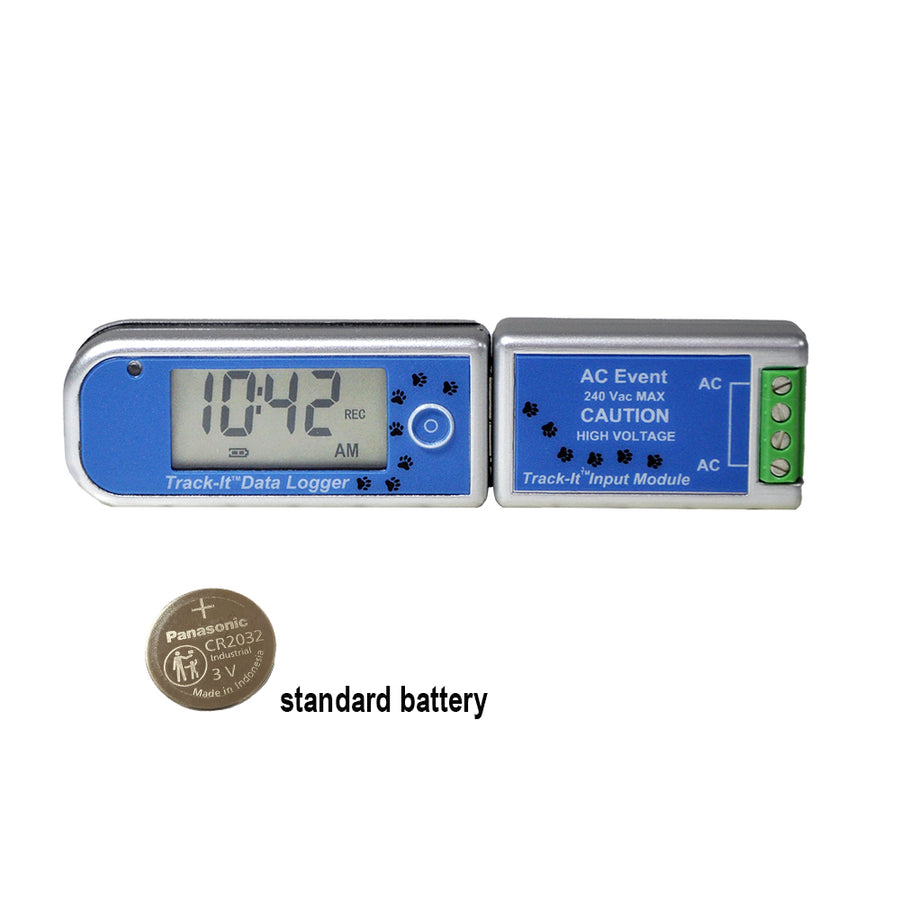

Track-It™ AC Event Data Logger

$189.00

SKU: MON-5396-0711

Request a Quote

✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support

Description

Specifications

Shipping & Returns

Downloads

The Track-It™ AC Event Data Logger is a battery-powered, compact data logger that records up to 64,000 on/off cycles. Use the AC Event Logger to monitor cycle patterns of pumps, blowers, and other electrical equipment powered by 120 or 240 Vac.

Includes battery and free Track-It™ Datalogger Software

Detailed Description

The Track-It™ AC Event Data Logger is a battery-powered, compact data logger that records up to 64,000 on/off cycles. Use the Track-It™ AC Event Logger to monitor cycle patterns of pumps, blowers, and other electrical equipment powered by 120 or 240 V ac. The unit is easily configured using the included Track-It™ DataLogger Software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours or can be set to store a sample at every event.

The onboard data storage is nonvolatile so data will not be lost in the event of a depleted battery. The Track-It AC Event Logger can also be used to record ambient temperature along with on/off cycles. This can help diagnose heat vs. issues. The information displayed on the LCD is also user programmable and can be sequenced by pressing the logger button. The multicolor LED indicator notifies the user of alarms or general activity.

Typical Uses

AC Motor efficiency studies
Predictive maintenance
Monitor lead/lag pump cycles
AC motor run times

Features

Pushbutton or program to start your record
Up to 64,000 On/Off cycles per channel
Monitor cycle frequency and duration
AC ON or OFF reporting
120/240 Vac 50/60 Hz
Alarm setpoints
Small compact size
Integral USB Interface (no custom cable)
Interactive software (included)
One year battery life (battery included)
Optional five-year battery life
Accurate internal clock (1 minute/year)
Multiple user-programmable displays

Track-It™ DataLogger Software

Track-It™ DataLogger Software is a powerful Windows-based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation, and export of the recorded data. Simply connect your Track-It data logger to an open USB port and begin communicating immediately.

Point and click to select your sample interval, alarm setpoints, engineering units, start recording triggers, and LCD.

View a numerical data table or graphical representation of data readings relative to time. Use the such as zoom, cursor, min. and max to examine and analyze the record. Track-It Software turns your PC into a real-time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one-click export function to automatically export stored data into an Excel spreadsheet.

This software is compatible with Windows 7/8/10, 32- and 64-bit.

Software Download

Track-It™ DataLogger Software

MD5 Hash: e2f152244cf71528c2a153aa10ac041b

Trouble downloading? Please note that if you are using Windows 10 or Windows 11 operating systems, you may encounter an issue with uploading the Track-It DataLogger Software due to Windows Defender protection. The solution is to temporarily turn off real-time Microsoft Defender

Track-It™ Transporter APP for Android Device

All Track-It™ Pressure/Temperature Data Loggers are compatible with the free Track-It™ Transporter Android application. The app allows you to use your Android device start/stop recording and transfer data using a USB On-The-Go cable.

The Track-It™ Transporter App is available for free on Google Play.

Specifications

Record	64,000 samples (Events)
Record Trigger	Two independent triggers. Multiple trigger modes: Instantaneous, button control, on alarm, time and date (start and stop), day of the week, or on the event only.
Record Mode	Fill to end of memory or cyclic, number of samples, time duration
Display	4-digit LCD (non-display versions available with LED only) User programmable: Indication of data value, eng engunitsits, alarms, record mode, battery condition, time/date, memory
LED	User-programmable: indication of alarms, recording, triggered
Button	User-programmable: view display, record on/off, reset alarms, reset timer
Alarms	2 user-programmable alarms (High or Low)
Communication	Direct USB connection
Software	Track-It™—Program device, view data (historic or real time), export to Excel™; simple and advanced modes
Battery	Standard: Lithium CR2032 coin cell, 1-year life typical @ 1 minute sample rate (varies with frequency of events) Long-Life: Li-SOCI2 EF651625, 3-year life typical @ 1 minute sample rate (varies with frequency of events)
Dimensions (LxHxW)	3.66 in. x 0.75 in. x 1.16 in. [9.29 cm x 1.91 cm x 2.95 cm] with Module: 4.06 in. x 0.66 in. x 1.00 in [10.32 cm x 1.67 cm x 1.00 cm]
Voltage Range	120 to 240 Vac parallel (voltage trigged optically isolated)
Clock Accuracy	± 1 minute/year

Measurement with available Analog Module

Temperature Range	-4 °F to 158 °F/-20 °C to +70 °C – Standard Battery -4 °F to 185 °F/-20 °C to +85 °C – Long-life Battery
Accuracy	-4 °F to 185 °F/± 1.0 °C -20 °C to 85 °C
Resolution**	0.0625 °C
Input Module	240 Vac Max

Specifications are subject to change without notice.

*All loggers display temperature in 0.1° resolution and record in full sensor resolution.
