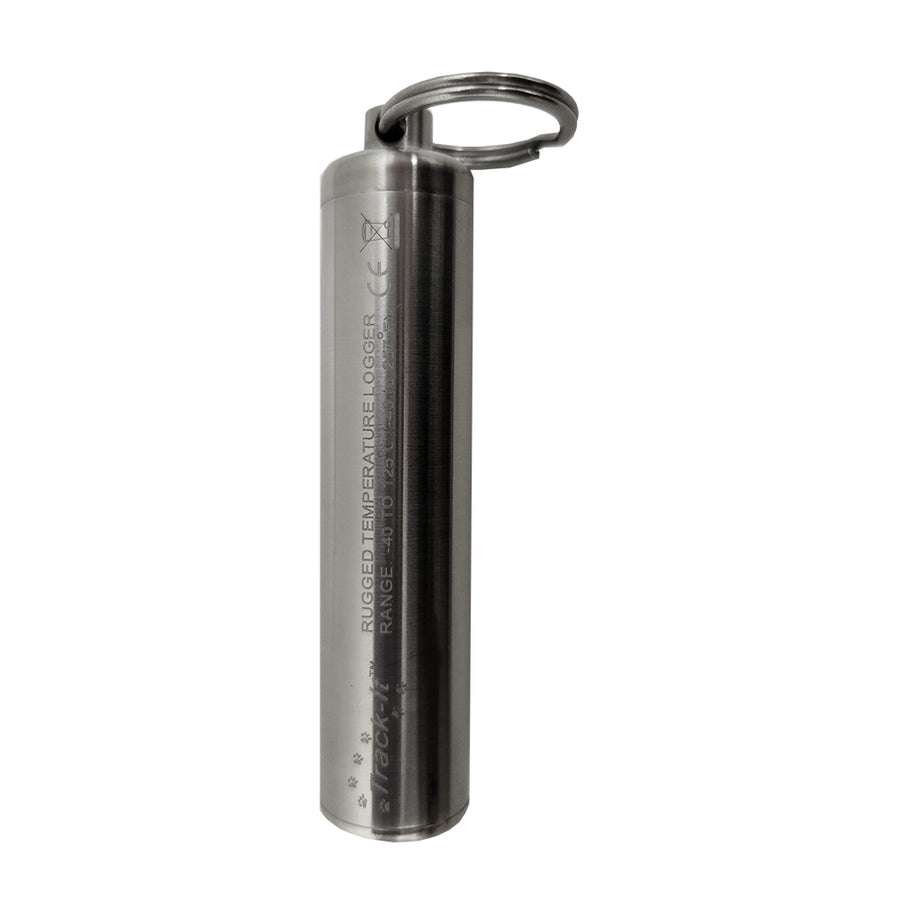

Track-It™ Rugged Temp Data Logger

The Track-It™ Rugged Temperature Data Logger is a submersible battery-powered stand-alone compact data logger that records up to 32,000 temperature data samples. A wide temperature range and 316L stainless steel IP68 packaging make it versatile and rugged enough for the more strenuous temperature logging applications. Moisture, corrosion, and forces are prevented from affecting your measurements, as well as submersion.

The unit is easily configured using the downloadable Track-It™ DataLogger Software. Connect the logger to an open USB port on your PC, and the software identifies the logger. Use the internal push button to start and stop recording and check status or configure the unit to start recording immediately, start and/or stop at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The onboard data storage is nonvolatile, so data will not be lost in a depleted battery.

Typical Uses

• FDA
• Storage
• Food
• Oil and Gas
• Buildings
• Laboratories
• HVAC
• Refrigeration
• Pharmaceutical
• Transportation/Cold Chain
• Freezers
• HACCP

Features

• Pushbutton or program to start recording
• Up to 32,000 samples per record
• Alarm setpoints
• Small compact size
• Integral USB interface (no custom cable)
• Interactive software (included)
• Three-year battery life (battery included)
• NIST Traceable Certificate available
• Wide temperature range: -40 to 257 °F/125 °C
• High accuracy and repeatability
• Accurate internal clock (1 minute/year)
• Projected time and date of full log
• Fast data retrieval
• Two seconds to 24 hours sample rate

Track-It™ DataLogger Software

Track-It™ DataLogger Software is a powerful Windows-based software package that is included with every Track-It data logger. It allows for easy setup, retrieval, interpretation, and export of the recorded data. Simply connect your Track-It data logger to an open USB port and begin communicating immediately.

Point and click to select your sample interval, alarm setpoints, engineering units, start recording triggers, and LCD.

View a numerical data table or graphical representation of data readings relative to time. Use the such as zoom, cursor, min. and max to examine and analyze the record. Track-It Software turns your PC into a real-time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one-click export function to automatically export stored data into an Excel spreadsheet.

This software is compatible with Windows 7/8/10, 32- and 64-bit.

Software Download

Track-It™ DataLogger Software

MD5 Hash: e2f152244cf71528c2a153aa10ac041b

Trouble downloading? Please note that if you are using Windows 10 or Windows 11 operating systems, you may encounter an issue with uploading the Track-It DataLogger Software due to Windows Defender protection. The solution is to temporarily turn off real-time Microsoft Defender.

The Track-It™ Transporter App

The Track-It™ Rugged Temperature Logger is compatible with the free Track-It Transporter Android application. The Transport Application allows you to use your Android device and an On-The-Go (OTG) cable to retrieve data from the logger while in the field. Record start/stop and erase memory is also available.

The Track-It™ Transporter App is available for free on Google Play.
