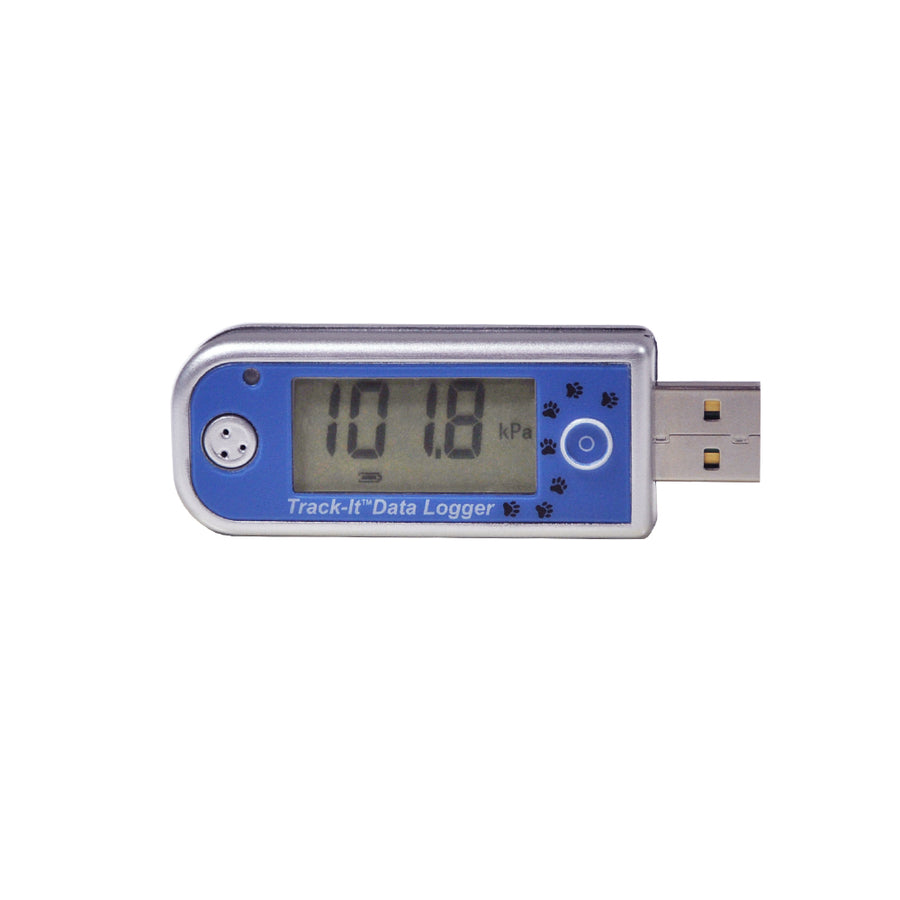

Track-It™ Barometric/Temperature Data Logger
The Track-It™ Barometric/Temperature Data Logger is a battery-powered, stand-alone compact USB logger that records up to 64,000 samples of barometric pressure and/or temperature data. The unit is easily configured using the downloadable Track-It™ DataLogger Software. Available with NIST Traceable Certificate.
Includes battery, splash-proof rubber cover, and Track-It™ DataLogger Software download.
Detailed Description
The Track-It™ Barometric-Temperature Data Logger is a battery-powered compact USB data logger that records up to 64,000 samples of barometric pressure and/or temperature data. The unit is easily configured using the downloadable Track-It™ DataLogger Software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger.
Configure the unit to start and stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The onboard data storage is nonvolatile so data will not be lost in the event of a depleted battery.
Barometric (also known as atmospheric) pressure can be displayed in a variety of engineering units. It can be used as an altimeter. The information displayed on the LCD is user-selectable and can be sequenced by pressing the logger pushbutton. A multicolored LED indicator notifies the user of alarms or general activity. A splash-proof protective cover protects the logger when in use. The Barometric logger is available with a standard coin cell or extended long-life battery. Additionally, the logger can be used to record external inputs using optional Track-It DC Voltage and Current modules.
Typical Uses
- Altitude
- Transportation
- Aviation
- Weather
- Environmental Comfort
- Building Management
- Healthcare Facilities
- Laboratory
- Manufacturing
Features
- Up to 64,000 samples per record
- Small compact size
- Integral USB interface (no custom cable!)
- Free Windows software
- Long-life battery option
- Temperature range: -4 to 185 °F/-20 to +85 °C (battery dependent)
- Accepts external DCV/DCI inputs
- High accuracy and repeatability
- User-programmable display indication
- NIST Traceable Certificate available
- Alarm setpoints
- Multiple engineering units
- Protective rubber boot included
Track-It™ DataLogger Software
Track-It™ DataLogger Software is a powerful Windows-based software package that is available for use with every Track-It data logger. It allows for easy setup, retrieval, interpretation, and export of the recorded data. Simply connect your Track-It data logger to an open USB port and begin communicating immediately
The software has both simple and advanced modes for programming the data logger. Set your sample interval, alarm setpoints, engineering units, recording mode and triggers, LCD functionality (if applicable), and more.
View a numerical data table or graphical representation of data readings relative to time. Use the graph tools such as zoom, cursor, min and max to examine and analyze the data. Track-It Software turns your PC into a real-time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one-click export function to automatically export stored data into an Excel compatible format.
This software is compatible with Windows® 7/8/10, 32- and 64-bit
Software Download
MD5 Hash: e2f152244cf71528c2a153aa10ac041b
Trouble downloading? Please note that if you are using Windows 10 or Windows 11 operating systems, you may encounter an issue with uploading the Track-It DataLogger Software due to Windows Defender protection. The solution is to temporarily turn off real-time Microsoft Defender.
Track-It™ Transporter App for Android App
All Track-It™ Pressure/Temperature Data Loggers are compatible with the free Track-It™ Transporter Android application. The app allows you to use your Android device start/stop recording and transfer data using a USB On-The-Go cable.
The Track-It™ Transporter App is available for free on Google Play.
Specifications
| Record | Sample Rates: user-configured 1 every 2 seconds up to 1 every 24 hours
Number of ofSamples: 32,000 or 64,000 (on setup) |
|---|---|
| Record Trigger | Two independent triggers
Multiple trigger modes: instantaneous, button control, on alarm, time and date (start and stop), day of week |
| Record Mode | Fill to end of memory or cyclic; number of samples, time duration |
| Display | 4-digit LCD user-programmable: indication of data value, eng units, alarms, record mode, battery condition, time/date, memory used
Logger display units: kPa, psi, bar, mbar, inches Hg, mm Hg, feet, meters Max logger display: 9999 |
| LED | User programmable: indication of alarms, recording, triggered |
| Button | User programmable: view display, record on/off, reset alarms |
| Alarms | 2 user-programmable alarms (High or Low) |
| Communication | Direct USB connection |
| Software | Track-It™ DataLogger Software — program device, view data (historic or real-time), export to Excel-compatible format; simple and advanced modes |
| Battery | Standard Coin Cell Battery option
Extended Long-Life Battery option |
| Dimensions LxHxW | 3.66 in. x 0.75 in. x 1.16 in. [9.29 cm x 1.91 cm x 2.95cm] |
| Pressure Range | 30 to 120 kPa (4.4 to 17.4 PSI) Absolute
Altitude: 30,000 ft. [9144 m] |
| Accuracy | +/-0.4 kPa 30-120 kPa (-20 °C to 0 °C)
+/-0.32 kPa 30-120 kPa (0 °C to 65 °C) |
| Resolution | 0.01 kPA displayed 0.001 kPa recorded |
| Temperature Range | -20 °C to +70 °C /-4 °F to 140 °F – Standard Battery
-20 °C to +85 °C /-4 °F to 185 °F – Long-Life Battery |
| Accuracy | ±1.0 °C |
| Resolution** | 0.1 °C displayed 0.015 °C recorded |
| Clock Accuracy | ± 1 minute/year |
Specifications are subject to change without notice.
*All loggers display temperature in 0.1° resolution and record in full sensor resolution.
