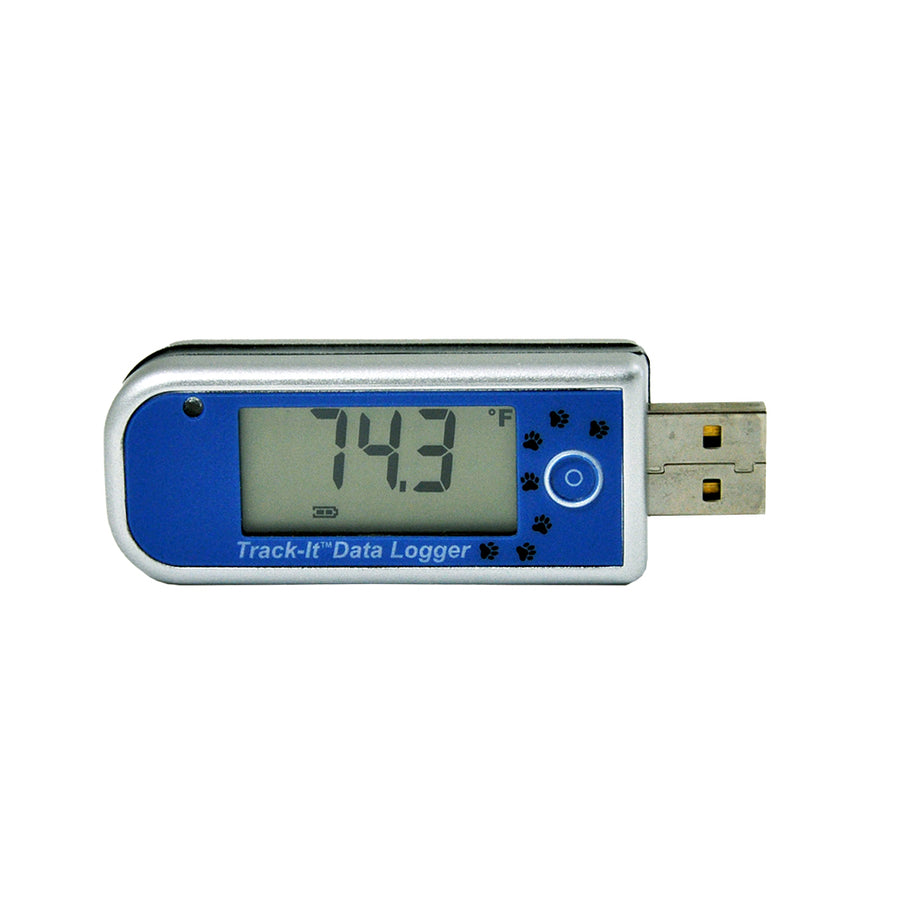

Track-It™ Temperature Data Logger with Display
The Track-It™ Temperature Data Logger with Display is a battery-powered, stand-alone compact USB device that records up to 64,000 temperature data samples. The unit is easily configured using the included Track-It™ DataLogger Software. Available with NIST Traceable Certificate
Includes battery, splash-proof protective cover, and Track-It™ DataLogger Software download.
Detailed Description
The Track-It Temperature Data Logger is a battery-powered, stand-alone compact USB logger that records up to 64,000 temperature data samples. The unit is easily configured using the included Track-It™ DataLogger Software. Plug the logger into an open USB port on your PC and the software automatically identifies the logger. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours.
The onboard data storage is non-volatile, so data will not be lost in the event of a depleted battery. The Track-It Temp Logger can be ordered with or without an LCD. The information displayed on the LCD is also user programmable and can be sequenced by pressing the logger button. Both models have a multicolored LED indicator to notify the user of alarms or general activity. A splash-proof protective cover safeguards the logger when in use.
Monarch offers a similar model without display; click here.
Typical Uses
- Shipping
- Warehouse
- Food processing
- Museums
- Laboratories
- HVAC
- Refrigeration
- Pharmaceutical
- Agriculture
- Computer rooms
- Communications equipment
Features
- Pushbutton to start recording immediately or program to start recording at a later time and date
- Up to 64,000 data samples per recording session
- Multiple alarm setpoints
- Compact size
- Integral USB connector
- Powerful interactive Track-It Software package included
- One year or 5-year lithium battery options
- Wide temperature range: -4 °F to 185 °F (-20 °C to 85 °C)
- High accuracy and repeatability
- Accurate internal clock (1 minute per year)
- Multiple user-programmable displays
- NIST Traceable Certificate available
Specifications
| Record | Sample rates: User-configured 1 every 2 seconds to 1 every 24 hours
Number of samples: up to 64,000 (depends on setup) |
|---|---|
| Record Trigger | Two (2) independent triggers
Multiple trigger modes: instantaneous, button control, on alarm, time and date (start and stop), day of week |
| Record Mode | Fill to end of memory or cyclic, number of samples, time duration |
| Display | 4-digit LCD, user programmable: indication of data value, eng units, alarms, record mode, battery condition, time/date, memory used % |
| LED | User-programmable: indication of alarms, recording, triggered |
| Button | User-programmable: view display, record on/off, reset alarms, reset timer |
| Alarms | Two (2) user-programmable alarms (High or Low) |
| Communication | Direct USB connection |
| Software | Track-It™ DataLogger Software — program device, view data (historic or real time), export to Excel compatible format; simple and advanced modes
Track-It™ Transporter Android App — set up device, quick summary, view data in tabular or graphic format, show alarms, email data and configurations |
| Battery | Standard: Lithium CR2032 coin cell, 1-year life typical @ 1 minute sample rate
Extended (Long-life): Li-SOCI2 EF651625, 3-year life typical @ 1 minute sample rate |
| Dimensions (L x H x W) | 3.66 in. x 0.75 in. x 1.16 in.
[9.29 x 1.91 x 2.95 cm] |
| Temperature Range | -20 to +60 °C / -4 to 140 °F – Standard Battery
-20 to +85 °C / -4 to 185 °F – Long-life Battery |
|---|---|
| Accuracy | ±0.5 °C –20 to 85 °C /-4 °F to 185 °F |
| Resolution | 0.1 °C displayed, 0.01 °C recorded |
| Clock Accuracy | ± 1 minute/year |
Specifications are subject to change without notice.
