UE Systems Inc.

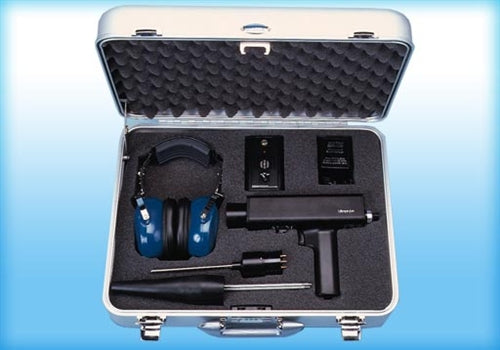

Ultraprobe 2000 Analog Ultrasonic Detection System - Choose your kit
$4,195.00
SKU: UP-2000C
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
Designed for ease of use, it often takes no more than 15 minutes to become competent in testing with the ULTRAPROBE® 2000 Kit Complete.
Intrinsically Safe - Class 1, Division 1, Groups A, B, C & D
Intrinsically Safe - Class 1, Division 1, Groups A, B, C & D
Fast accurate diagnosis through the ULTRAPROBE 2000 System will dramatically reduce unplanned down time and shorten planned outage time. The ULTRAPROBE is the most versatile diagnostic instrument you'll ever need.
Specifications
| CONSTRUCTION | Hand held metered pistol type made with anodized aluminum and ABS plastic |
|---|---|
| FREQUENCY RESPONSE | Detect ultrasonic frequencies between 20 kHz and 100kHz, continuously variable. Frequencies are converted to 100 Hz to 3 kHz audio. |
PROBES
| Scanning Module | patented TRISONIC plug-in type consisting of a phased array of multiple transducers for airborne ultrasound. This probe is shielded against RF interface. |
|---|---|
| Stethoscope Module | plug-in type, insulated probe with RF shielding; 4 1/2" (11.4 cm) long steel probe tip, conically shaped for uniform surface contact. Probe tip is interchangeable. Stethoscope Extension Kit: 3 piece, segmented metal rods to increase stethoscope contact range 20" (50.8.cm) and 31" (76.2 cm). |
| TRANSMITTER | Patented warble tone transmission |
| HEADSET | Noise isolating type: double headset wired monophonic, impedance, 16 ohms. Over 23 dB of noise attenuation. Meets or exceeds ANSI specification and OSHA standards. |
| INDICATORS | Ballistic output meter: linear calibration scale of 0-100 for logging relative measurements. Meter is accurate 1% throughout entire scale. Low level Battery LED indicator for main housing internal power supply. |
| BATTERIES | Self contained nickel-cadmium rechargeable. |
| Recharging system | Standard 110V. Also available in 220V. |
FEATURES
| Frequency tuning adjustment dial | Scale 20-100 kHz with "fixed band" positions for ultra-narrow frequency response. |
|---|---|
| Optional auxiliary mode selection for chart recorder output | 0 - 50 mV, Precision 10 turn adjustment dial with numerically calibrated sensitivity increments for finite gain adjustment. |
OVER-ALL SIZE
| Complete kit in Zero Halliburton aluminum carrying case | 15" x 22" x 7" (38.1 x 55.9 x 17.8 cm). Pistol unit 2 lbs (.9kg). |
|---|---|
| Complete carrying case | 14 lbs (6.4 kg). |
| SENSITIVITY | Detects .005" (.127 mm) dia. leak @ 5 psi (.34 bar) at a distance of 50 ft (15.24 m). |
| THRESHOLD* | 1 X 10-² 1 X 10-³ std. cc/sec. freon |
| WARRANTY | 5 Years parts/labor *depends on configuration |
GOVERNMENT CODES
| NSN | 6635-01-156-3927 |
|---|---|
| FSCM (CAGE) Code | 59202 |
| Covered by one or more of the following patents | 4416145, EP015115, 502674183, 788, 404, 576, 583, 607 |
