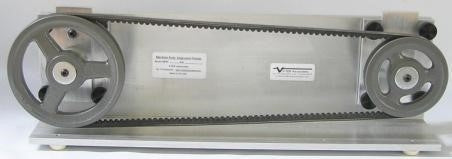

V-TEK MPAT-02 Machine Pulley Alignment Trainer

The MPAT Pulley Alignment Trainer by V-TEK has a wide range of features and options, including:

•  Used for laser pulley/sheave alignment training
• The versatile stand has two adjustable shaft assemblies enabling parallel, axial and angular adjustments
• Adjustable friction of sheave rotation and adjustable belt tensioning

Whether you need a laser or sheave alignment system, our Machine Pulley Alignment Trainer will get the job done.

Approximate size and weight, 23.0” L x 5.5” W x 7.5” H 17 Lbs

Note: Pulley misalignments cause excessive belt and sheave wear, reduced bearing life, increased power consumption and high vibration levels. There are multiple types of misalignments that occur when the drive and driven shafts are not parallel and the sheaves are not axially aligned on the drive and driven shafts. Misalignment can be caused by improper belt tension and ineffective alignment procedures.
