Pixavi

VisiWear EX3500 Explosion Proof Camera and Video Conferencing

$0.00
SKU: PIX-3500
Qty
Request a Quote
✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support
Description
Specifications
Shipping & Returns

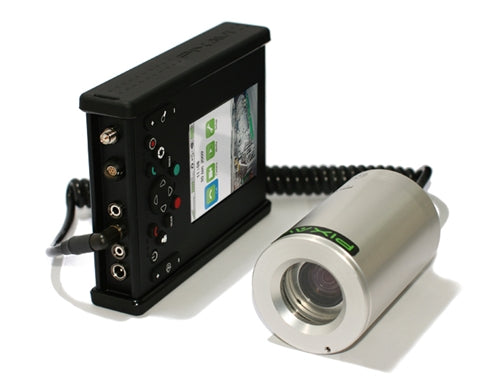

The Visiwear EX3500 is an intrinsically safe, wearable video conferencing and collaboration Explosion Proof Camera system certified for use in hazardous area. IECEx and ATEX Zone 1 and Zone 2. The product is a bundle of the Xcore EX 6000 codec, the EX-CAM-A EX camera as well as a wireless Ex certified wireless headset from Peltor. It is designed to reduce travel costs and increase operational efficiency in your organization. The compact and rugged product uses well established video conferencing standards such as SIP, H.323, ISMA and RTSP streaming over wireless networks. It is simply the best way of communicating in hazardous areas. Featuring ports for Wifi, Wireless audio, Audio in, Audio out, Microphone In, Video in, the VisiWear 3500 series can take on pretty much any Audio, Video or Data peripheral out there. A camera is purchased separately.

Feature Rich Technology Package

The 3500 series can be worn as a belt pack or via a neck strap. Once connected to the Xcam Mini it can transmit HD video in real time over Wi-Fi. Using our Xcam Mini miniature camera the user can thereby wear the camera on a helmet, glasses or similar. The codec can dial into any standard based video conferencing system or MCU. The camera is ideal for tasks where the user needs hands free operation while in the video conference.

Wireless Networking

The product features Wi-Fi and Bluetooth networking standard. This increases both the coverage, video quality, quality of service, and the multi-part call capacity. It also supports WPA2 enterprise security.

Hands Free and Wireless Audio Support

The device has a built in digital microphone and a high performance speaker (1W) to ensure hands free. Combined with the on-board echo cancellation, the user is ensured excellent audible quality. You can also use wireless blue-tooth headsets or tethered headsets. This is included in the package.

Lightweight and Rugged but also compact

The VisiWear codec is housed in a rugged constructed aluminum chassis and weighs only 800 grams, despite the advanced performance, technology and certifications it holds. The combination of light weight and rugged materials makes it able to withstand drops of up to 4 meters on a concrete floor. It is certified for IP 68.

Explosion Proof Camera

SPECIFICATIONS:


H.323 Signaling H.323, H.450, H.350, H.235, H.239, H.460
SIP Signaling: RFC 3489, RFC 3261, RFC 2237, RFC 3264, RC 3311. RFC 3550, RFC 2032, RFC 2190, RFC 2429, RFC 3407, RFC 3489
Wireless 802.11a/g and Bluetooth
Streaming RTP, RTSP, ISMA
Video H.263, H.264
Video Quality CIF, 480P, 720P
Video Bitrates 128 kbps to 4096 kbps
Audio G.711, G.722, G.722.1, G.728, AAC-LD, AAC-LC
Security WPA 2 Enterprise
Connections 7 Volt output for camera supply, DC input, SMA antenna connection, DC input.
Integrated Peripherals Codec, speaker, microphone, antenna
Storage/Recording Internal 32 GB of flash storage

PHYSICS:

Size 130mm x 110mm x 30 mm
Weight 800 grams (28,2 oz)
Temp. Range -20 to +40 Celcius
Material Aluminum
Screen 480x640 Touch enabled LCD
Safety C-loop for Dropped Object Safety

CERTIFICATIONS:

Ex Certified Zone 1 and 2 (Ex ib [ib] mb IIC T6)
IP Grade IP68 (water proof)
Shock Resistance 4 Joule shock & 2 mtr. drop proof
Country of Origin Made in Norway
Toll Tariff HTC: 85258000
FCC FCC Compliant
CE CE Compliant

Contact us at (214) 238-0493 for full specifications.
