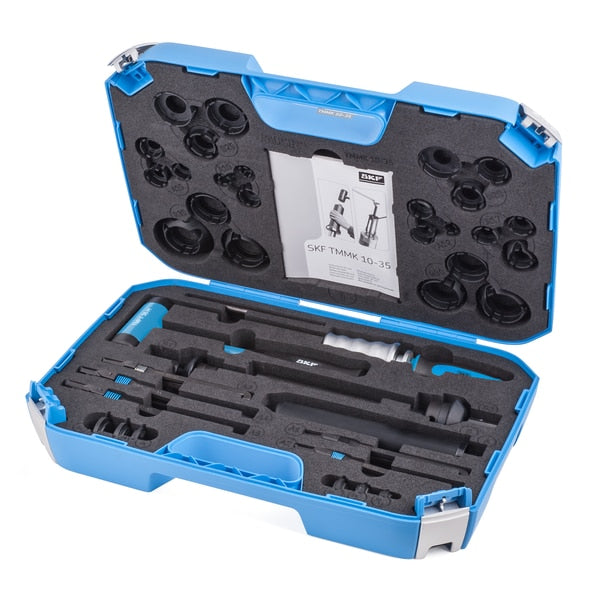

SKF Combo Kit TMMK 10-35

$2,761.11

SKU: SKF-TMMK 10-35

Request a Quote

✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support

Description

Specifications

Shipping & Returns

Downloads

Multi-purpose kit for easy and quick mounting and dismounting

The SKF Combo Kit, TMMK 10-35, comprising a total of 50 different components, is designed for quick, precise and safe mounting and dismounting of bearings with a bore diameter between 10 and 30 mm (0.4 - 1.2 in). For mounting, a multi-purpose fitting tool is included which is suitable for bearings as well as bushings, seal rings, belt pulleys and other similar products. For dismounting, a three-armed puller is included. This puller can be used for deep groove ball bearings with an interference fit on both rings or on the outer-ring without a shaft. All parts are clearly arranged in a practical transport case with a selection chart and instruction drawings.

Dismounting

Puller arms made of high tensile alloy steel
All arms provided with color codes for easy identification
Hinged arms for optimal grip in bearing
Elastic locking ring for easy connection of arms to spindle

Mounting

Impact damage to bearings eliminated with fitting tools
Rings and impact surfaces made of a super-tough acetal resin; resulting in high mechanical strength and fatigue and impact resistance at a very low weight
Fiberglass handle on hammer for safe and ergonomic grip; absorbs shocks and vibrations

Selection chart TMMK 10-35


				D d
6000	M12	A1		A 10/26	A
6200	M12	A1	1	A 10/30
6300	M12	A3		A 10/35
6001	M12	A1		A 12/28
6201	M12	A2	2	A 12/32
6301	M12	A3		A 12/37
6002	M12	A1		A 15/32
6202	M12	A2	3	A 15/35
6302	M12	A3		A 15/42
6003	M12	A1		A 17/35
6203	M12	A2		A 17/40
6303	M16	A4	4	A 17/47
6403	M16	A5		B 20/52	B
6004	M12	A2		B 20/42
6204	M12	A3	5	B 20/47
6304	M16	A4		B 20/52
63/22	M16	A4		B 25/52
6005	M12	A2	6	B 25/47
6205	M12	A3		B 25/52
6305	M16	A5		B 25/62
63/28	M16	A5		B 30/62
6006	M12	A2	7	B 30/55
6206	M16	A4		B 30/62
6306	M16	A5		B 30/72
6007	M12	A3
6207	M16	A5
6307	M16	A5
6008	M12	A3
6208	M16	A5
6009	M12	A3
6209	M16	A5
6010	M12	A3
6210	M16	A5
6011	M16	A4
6211	M16	A5
6012	M16	A4
6013	M16	A4
6014	M16	A5
6015	M16	A5
6016	M16	A5
6017	M16	A5

Specifications

Dimensions

Workpiece bore diameter (mounting)	0.3937 – 1.378 in
Workpiece bore diameter (dismounting)	0.3937 – 3.3465 in
Workpiece depth (max)	Dismounting with arms A1: 5.3 in, A2: 5.3 in, A3: 5.4 in, A4: 6.4 in, A5: 6.6 in Mounting with Sleeve A: 8.7 in, B: 8.7 in
Total arm length	Arm A1: 7.4 in Arm A2: 7.4 in Arm A3: 7.6 in Arm A4: 8.9 in Arm A5: 9.1 in
Effective spindle length	Spindle S1: 8.4 in Spindle S2: 8.4 in
Total spindle length	Spindle S1: 10.8 in Spindle S2: 11.4 in
Spindle head, hexagon size	Spindle S1: 3/4 in Spindle S2: 1 in
Sleeve outer lengths	A: 9.0 in B: 9.3 in
Sleeve, outer diameter	A: 1.0 in B: 1.7 in
Hammer length	12.4016 in
Hammer width	4.5276 in
Case dimensions (l x h x w)	20.9 x 4.3 x 14.2 in

Properties

Mounting force generation	Hammer
Suitable for workpiece mounting on a Cylindrical seating (straight shaft)	Yes
Suitable for bearing mounting on a Tapered seating (conical shaft)	Not recommended
Suitable for bearing mounting on a Sleeve (adapter or withdrawal)	Not recommended
Suitable for workpiece mounting in a Blind arrangement (housing with shaft)	Yes
Suitable for workpiece mounting in a Housing	Yes
Dismounting force generation	Mechanical spindle or Sliding hammer
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)	Yes
Suitable for bearing dismounting from a Tapered seating (conical shaft)	No
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)	No
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)	Yes
Suitable for workpiece dismounting from a Housing	Yes
Suitable for bearing type(s)	Mounting: All types Dismounting: SKF Deep Groove Ball Bearings (DGBBs)
Allowed temperature of the mounting object	-22 – 230 °F
Number of arms	5 sets of 3, named A1 to A5
Number of rings	24
Models of rings	2, named A and B
Number of sleeves	2, named A and B
Total number of spindles in kit	2
Spindle nose piece	No
Hammer type	Dead blow hammer
Hammer weight	1.98 lb
Hammerhead	Sturdy polyurethane (PU) preventing damage to the sleeve heads
Material	Rings: Impact resistant polyamide (PA) Sleeves: Glass fiber filled polyamide (PA) Hammer: Steel, PU Puller: Medium carbon steels and alloy engineering steels, black phosphated, hardened and tempered
Colour	Hammer: Black/Blue Puller: Black metallic Rings: Black Sleeves: Black
Content	5x sets of 3 arms, size A1 to A5 2x spindles, size S1 and S2 1x spindle holder 1x sliding hammer 24x impact rings, sizes A and B Impact sleeves, sizes A and B 1x dead blow hammer 6x spindle support rings 1x printed Instructions for Use (language free) 1x carrying case (size C)

Logistics

Country of manufacture	Slovenia
Product net weight	16.8 lb
eClass code	23-05-19-01
UNSPSC code	27111712
