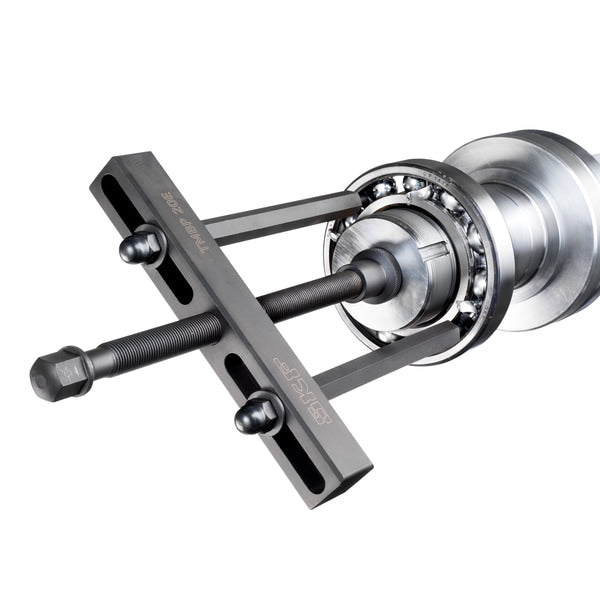

SKF TMBP 20E Blind Housing Puller Kit
Removes bearing without dismantling machinery
The SKF TMBP 20E is a unique adapter type puller for dismounting ball bearings in blind housings. The cage of the bearing must be broken apart in order to insert the adapters between the bearing inner and outer raceways.
- Balanced tension for reduced resistance and rapid extraction
- Supplied as kit in sturdy carrying case with 20 parts
Technical data
- Suitable bearings
- 6021-6032
- 6213-6230
- 6309-6321
- 6406-6417
- Effective length of arms 600 mm (24 in)
- Overall puller spread 60 - 210 mm (2.4 - 8.3 in)
- Adapter diameters 16 - 32 mm (0.6 - 1.3 in)
- Weight 9 kg (20 lb)
- Dimensions of case 410x320x125 mm (16x13x5 in)
Part ordering details
- TMBP 20-1K
- 1 Beam
- 2 Spindle (incl. thrust nut and nose piece)
- 3 Main rods (2) incl. nuts and washers
- TMBP 20-2K
- 4 Extension rods -195 mm (2)
- 5 Extension rods -295 mm (2)
- TMBP 20-3K
- 6 Bearing adapters no. 7 (2)
- 7 Bearing adapters no. 8 (2)
- 8 Bearing adapters no. 9 (2)
- TMBP 20-4K
- 9 Bearing adapters no. 10 (2)
- 10 Bearing adapters no. 11 (2)
- 11 Bearing adapters no. 12 (2)
General instructions TMBP 20
1. Remove seal and open selected section of ball cage. Clean the swarf out.
2. Insert appropriate bearing adapter and rotate it 90° ensuring positive grip within the bearing race.
3. Insert the second adapter into prepared area diametrically opposed. Connect the adapters to the main rod. Assemble beam and spindle. Start extracting.
TMBP 20 selection chart
- Use Adapter: 7
- w/ SKF ball bearing type:
- 6021 6022 6024
- 6213 6214 6215 6216
- 6309 6406
- w/ SKF ball bearing type:
- Use Adapter: 8
- w/ SKF ball bearing type:
- 6026 6028 6030
- 6217 6218 6310
- 6311 6312
- 6407 6408 6409
- w/ SKF ball bearing type:
- Use Adapter: 9
- w/ SKF ball bearing type:
- 6032 6219 6220
- 6313 6314 6410
- w/ SKF ball bearing type:
- Use Adapter: 10
- w/ SKF ball bearing type:
- 6221
- 6315
- 6411
- w/ SKF ball bearing type:
- Use Adapter: 11
- w/ SKF ball bearing type:
- 6222 6224 6226 6228 6230
- 6316 6317 6318
- 6412 6413
- w/ SKF ball bearing type:
- Use Adapter: 12
- w/ SKF ball bearing type:
- 6319 6320 6321
- 6414 6415 6416 6417
- w/ SKF ball bearing type:
Specifications
| Total spindle length | 12.9 in |
|---|---|
| Case dimensions (l x h x w) | 20.9 x 3.4 x 7.0 in |
| Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) | Yes |
|---|---|
| Suitable for bearing dismounting from a Tapered seating (conical shaft) | No |
| Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) | No |
| Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) | Yes |
| Suitable for workpiece dismounting from a Housing | No |
| Suitable for bearing type(s) | SKF Deep Groove Ball Bearings (DGBB's) |
| Bearing bore diameter range | 0.3937 – 3.937 in |
| Number of arms | 2 |
| Number of arm extension pieces | 4 included |
| Spindle torque (max) | 114 lbf·ft |
| Pulling force (max) | 5.61 tf |
| Max bearing depth | With standard arm: 5.8 in With arm and 1 extension rod, 13.7 in With arm and 2 extension rods 21.5 in |
| Total Arm length | Arm rod: 8.9 in Arm rod + extension rod: 16.7 in Arm rod + 2 extension rods: 24.6 in |
| Effective spindle length | 8.6 in |
| Spindle nose piece | Yes , diameter 1.5 in |
| Spindle head, hexagon size | 7/8 in |
| Total number of bearing adapters in kit | 6 sets of 2 |
| Total number of spindles in kit | 1 |
| Material | Medium carbon steels and alloy engineering steels, hardened and tempered |
| Coating | Black phosphated |
| Colour | Black metallic |
| Content | 6x sets of 2 bearing adapters, size A to F 1x Beam 1x spindle with nose piece 2x arm rods 4x arm extension rods 4x washers 2x nuts 1x printed Instruction for Use (language free) 1x Carrying case (size X) |
