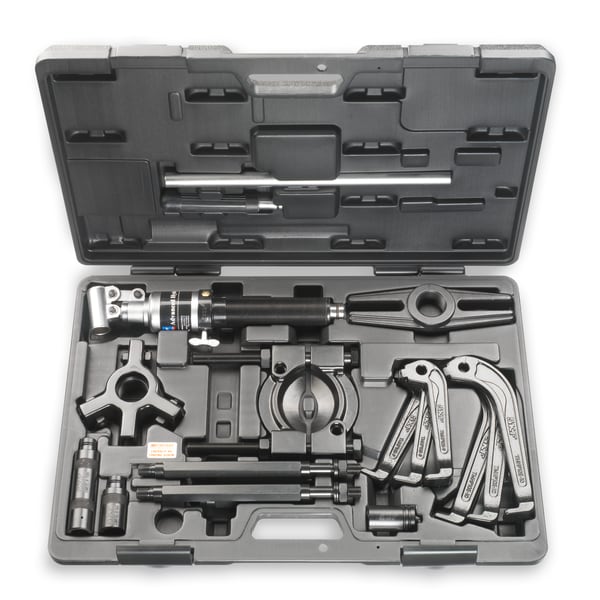

SKF-TMHC 110E Hydraulic Bearing Puller Kit
$1,812.31
$3,851.14
SKU: SKF-TMHC 110E
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
Powerful combination of a jaw and strong back bearing puller
The SKF TMHC 110E is a hydraulic puller kit, which combines a jaw puller and a strong back puller with up to 100 kN (11.2 ton US) pulling power. The versatile puller kit facilitates safe and easy dismounting in a variety of applications.
Features
- Unique combination of a hydraulic jaw and a strong back puller for use in various applications
- High load rating of 100 kN (11.2 ton US) make the TMHC 110E suitable for use in many applications
- Hydraulic spindle facilitates easy and quick dismounting, effortless generation of force
- The jaw puller includes 2 different arm sizes for maximum reach of 120 mm (4.7 in) The jaw puller can be assembled as a three-armed or two-armed puller depending on the space and demands of the application
- The firm grip of the strong back puller behind the bearing's inner ring reduces the force required to dismount the bearing The special separator design of the strong back puller allows the puller to be used even in the tightest spaces
-
The extension rods of strong back puller allow a maximum reach of 255 mm (10 in) for quick adaptation to required pulling length
Specifications
| Designation | TMHC 110E |
|---|---|
| Description | Advanced hydraulic puller kit |
Overall data
| Contents | 1 x arm-assembly stand
3 x arms, 70 mm (2.7 in) 3 x arms, 120 mm (4.7 in) 1 x separator set 1 x beam 2 x main rods 2 x extension rods, 125 mm (4.9 in) 1 x hydraulic spindle TMHS 100 2 x extension pieces for hydraulic spindle; 50, 100 mm (2.0, 3.9 in) 1 x nose piece with center point for hydraulic spindle |
|---|---|
| Maximum stroke | 80 mm (3.1 in) |
| Nominal working force | 100 kN (11.2 US ton force) |
| Weight | 13.5 kg (29.8 lb) |
| Cycle life hydraulic cylinder | Minimum 5000 cycles up to 100 kN (11.2 US ton force) |
| Threading hydraulic cylinder | UN 1½'' x 16 tpi |
| Safety valve setting hydraulic cylinder | 105 kN (11.8 US ton force) |
| Carrying case dimensions | 580 x 410 x 70 mm (23 x 16 x 2.8 in) |
Jaw puller
| Effective arms length, arms set 1 (TMHP 10E-9) | 70 mm (2.7 in) |
|---|---|
| Width of grip, arms set 1 | 50-110 mm (2-4.3 in) |
| Claw dimensions | a = 5 mm (0.2 in) b = 15 mm (0.6 in) c = 25 mm (1 in) |
| Effective arms length, arms set 2 (TMHP 10E-10) | 120 mm (4.7 in) |
| Width of grip, arms set 2 | 75-170 mm (3.0-6.7 in) |
| Claw dimensions | a = 6 mm (0.2 in) b = 15 mm (0.6 in) c = 25 mm (1 in) |
Strong back puller
| Maximum reach | 255 mm (10 in) |
|---|---|
| Shaft diameter range | 20 - 100 mm (0.8 - 4 in) |
