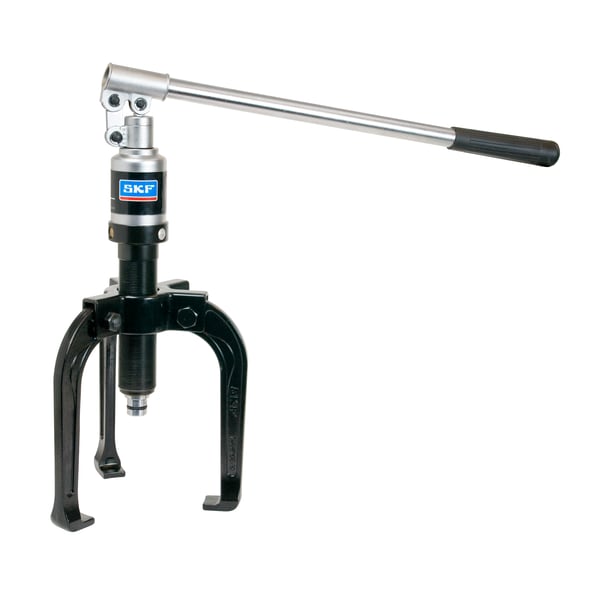

SKF TMHP 10E Hydraulic Bearing Puller Kit

Effortless bearing dismounting up to 100 kN

• High load rating of 100 kN (11.2 ton US) makes the puller suitable for a variety of dismounting jobs
• The 3 different arm sizes, with a maximum effective arm length of 200 mm (7.8 in), make the TMHP 10E suitable for use in a wide range of applications
• The self-locking arms minimise the risk of the puller slipping from the application when under load Hydraulic spindle facilitates effortless dismounting
• The hydraulic spindle is equipped with a safety valve, which minimises the risk of puller overload by limiting the applied force to 100 kN (11.2 ton US)
• Long stroke of hydraulic spindle, 80 mm (3.1 in), facilitates dismounting in one operation
• Extension pieces of the hydraulic spindle allow quick adaptation to pulling length
• The spring-loaded centre point of the hydraulic spindle allows easy centring of the puller on the shaft without damaging it

Technical data:

• TMHP 10E - Advanced hydraulic jaw puller kit
  • Contents:
    • 1 x arm-assembly stand
    • 3 x arms, 120 mm (4.7 in)
    • 3 x arms, 170 mm (6.7 in)
    • 3 x arms, 200 mm (7.8 in)
    • 1 x hydraulic spindle TMHS 100
    • 3 x extension pieces for hydraulic spindle; 50, 100, 150 mm (2, 4, 6 in)
    • 1 x nosepiece with centre point for hydraulic spindle
  • Maximum stroke: 80 mm (3.1 in)
  • Weight (complete kit): 14,5 kg (32 lb)
  • Cycle life (hydraulic cylinder): Minimum 5000 cycles up to 100 kN (11.2 US ton force)
  • Threading (hydraulic cylinder): UN 1½'' x 16 tpi
  • Safety valve setting (hydraulic cylinder): 105 kN (11.8 US ton force)
  • Carrying case dimensions: 578 x 410 x 70 mm (23 x 16 x 2.8 in)
  • Nominal working force: 100 kN (11.2 US ton force)
• Arm set 1 (3 x TMHP 10E-10)
  • Effective arms length: 120 mm (4.7 in)
  • Width of grip: 75-170 mm (3.0-6.7 in)
  • Claw dimensions:
    • a = 6 mm (0.2 in)
    • b = 15 mm (0.6 in)
    • c = 25 mm (1 in)
• Arm set 2 (3 x TMHP 10E-11)
  • Effective arms length: 170 mm (6.7 in)
  • Width of grip: 80-250 mm (3.1-9.8 in)
  • Claw dimensions:
    • a = 6 mm (0.2 in)
    • b = 12 mm (0.5 in)
    • c = 25 mm ( 1 in)
• Arm set 3 (3 x TMHP 10E-12)
  • Effective arms length 200 mm (7.8 in)
  • Width of grip 110-280 mm (4.3-11 in)
  • Claw dimensions:
    • a = 6 mm (0.2 In)
    • b = 12 mm (0.5 in)
    • c = 25 mm (1 in)
