SKF TMMD 100 Deep Groove Ball Bearing Puller Kit

Easy dismounting of bearings in blind housings

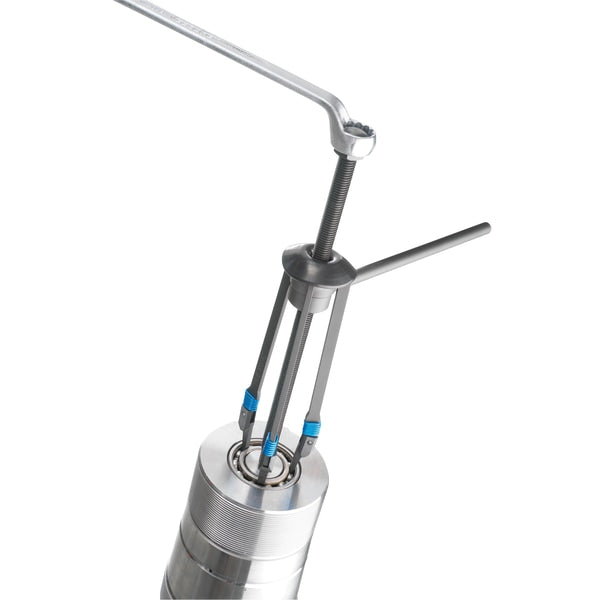

The SKF TMMD 100 is especially designed to allow easy and quick dismounting of deep groove ball bearings with interference fit on both rings. The puller is suitable for use in both blind housings and shaft applications. In addition to dismounting open bearings, the TMMD 100 can be used to dismount sealed bearings after the removal of the seal. The puller kit contains six sets of different size puller arms, two spindles and one handle packed in a carrying case. The TMMD 100 is suitable for dismounting up to 71 different SKF deep groove ball bearings from shaft diameter ranging between 10 and 100 mm (0.4 - 3.9 in).

• The claws are especially designed to facilitate a precise fit in the bearing's raceways, providing good grip and allowing the application of higher dismounting forces
• Each puller arm is fitted with a spring for easy installation
• The puller arms are made of a single piece, laser-cut hardened-steel for strength and longevity
• Arm sizes 4, 5 and 6 are fitted with filling plates to accommodate a wide range of bearings The hexagon head of the spindle is equipped with an anti-slip pin, which prevents the spanner from sliding down the spindle during dismounting
• The rotation angle of the claw has been limited to allow easy insertion
• The designation is laser-engraved on the arms allowing easy identification and selection

• The rubber cap allows easy and quick attachment of the arms to the spindle.
• It also prevents the puller arms from detaching from the spindle during operation
• The springs are color-coded for easy arm selection and matching
• Bearing selection chart included

Technical Details:

• Suitable bearings:
  • 6000 - 6020
  • 6200 - 6218
  • 6300 - 6313
  • 6403 - 6410
  • and more (see chart below)
• Effective length:
  • A1
    • L: 135 mm (5.3 in)
    • H: 16 mm (0.6 in)
    • E: 79 mm (3.1 in)
  • A2
    • L: 135 mm (5.3 in)
    • H: 16 mm (0.6 in)
    • E: 79 mm (3.1 in)
  • A3
    • L: 137 mm (5.4 in)
    • H: 23 mm (0.9 in)
    • E: 77 mm (3.0 in)
  • A4
    • L: 162 mm (6.4 in)
    • H: 26 mm (1.0 in)
    • E: 52 mm (2.0 in)
  • A5
    • L: 167 mm (6.6 in)
    • H: > 52 mm (> 2.0 in)
    • E: 49 mm (1.9 in)
  • A6
    • L: 170 mm (6.7 in)
    • H: > 100 mm (> 3.9 in)
    • E: 49 mm (1.9 in)
• Weight: 3.8 kg (8.4 lb)
• Dimensions of case: 395 x 300 x 105 mm (15.5 x 11.8 x 4.1 in)
• Contents:
  • 3 - puller arms TMMD 100-A1
  • 3 - puller arms TMMD 100-A2
  • 3 - puller arms TMMD 100-A3
  • 3 - puller arms TMMD 100-A4
  • 3 - puller arms TMMD 100-A5
  • 3 - puller arms TMMD 100-A6
  • 1 - small spindle and nut
  • 1 - big spindle and nut
  • 1 - handle
  • 1 - language-free instructions for use booklet

Selection chart - TMMD 61
