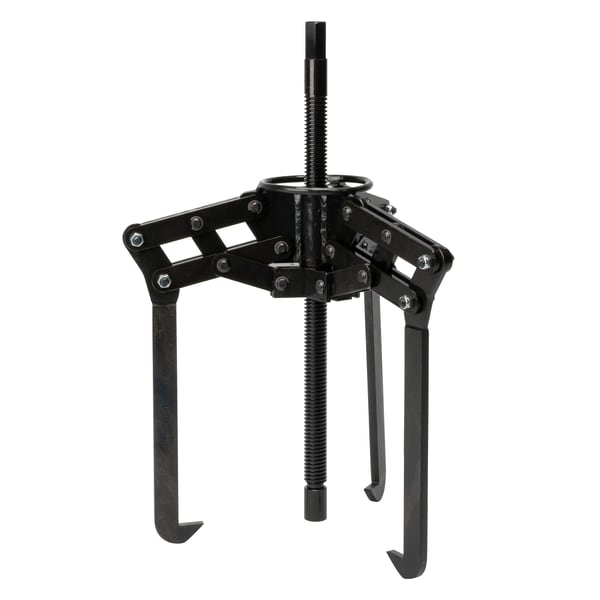

SKF TMMP Series - Heavy Duty Jaw Pullers

Powerful self-centering mechanical pullers

The SKF TMMP heavy duty jaw pullers provide perfect alignment and shaft protection as well as an exceptional grip for medium to large size bearings.

• 3 arm jaw pullers with a maximum withdrawal force of 6 to 15 tonnes (13,500 to 33,700 lbf)
• Unique pantograph system for grip width adjustment that counteracts misalignment during operation
• Fast, efficient and smooth handling
• Blackened, high quality steel with optimum corrosion resistance

Technical data:

• TMMP 6
  • No. of arms: 3
  • Width of grip: 127 mm / 5.0 inches
  • Effective length of arms: 120 mm / 4.7 inches
  • Maximum withdrawal force: 60 KN / 13,500 lb/f
  • Weight: 4.0 kg 8.8 lbs
• TMMP 10
  • No. of arms: 3
  • Width of grip: 223 mm / 8.7 inches
  • Effective length of arms: 207 mm / 8.2 inches
  • Maximum withdrawal force: 100 KN / 22,500 lb/f
  • Weight: 8.5 kg 19 lbs
• TMMP 15
  • No. of arms: 3
  • Width of grip: 326 mm / 12.8 inches
  • Effective length of arms: 340 mm / 13.4 inches
  • Maximum withdrawal force: 150 KN / 33,700 lb/f
  • Weight: 21.5 kg 47.4 lbs
• Other arm lengths available according to part ordering details.

• TMMP nnn-1 (1 on diagram)
  • Arm - length
    • TMMP 6 - 120 mm / 4.7 in
    • TMMP 10 - 207 mm / 8.2 in
    • TMMP 15 - 260 mm / 10.2 in
• TMMP nnn-2 (2 on diagram)
  • Arm - length
    • TMMP 6 - 220 mm / 8.6 in
    • TMMP 10 - 350 mm / 13.8 in
    • TMMP 15 - 340 mm / 13.4 in
• TMMP nnn-3 (3 on diagram)
  • Arm - length
    • TMMP 6 - 370 mm / 14.5 in
    • TMMP 10 - 460 mm / 18.1 in
    • TMMP 15 - 435 mm / 17.1 in
• TMMP nnn-4 (4 on diagram)
  • Arm - length
    • TMMP 6 - 470 mm / 18.5 in
    • TMMP 10 - 710 mm / 27.9 inches
    • TMMP 15 - 685 mm / 27.0 in
• TMMP nnn-5 (5 on diagram)
  • Spindle with center nib
• TMMP nnn-1K (6 on diagram)
  • Stand, boss, complete set of pins, bolts and link arms (per arm)
