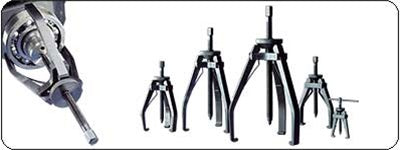

Versatile two and three arm mechanical bearing pullers

One of the easiest and most effective ways to dismount small to medium size bearings is to use a mechanical puller. Using an SKF puller helps to ensure that no damage is caused to the bearing or to the bearing seating during dismounting. SKF standard jaw pullers offer you easy and safe jaw puller operation.

Range of five different jaw pullers with two or three arms
Maximum nominal span from 65 to 300 mm (2.6 to 11.8 in)
Cone system for automatic centering and secure positioning of arms
Strong springs to keep arms apart for easy operation
Hardened, high quality carbon steel

Technical data:

TMMP 2x65 No. of arms: 2 Width of grip: 65mm / 2.6 inches Effective length of arms: 60mm / 2.4 inches Maximum withdrawal force: 6.0 kN / 1,340 lbf Weight: 0.4 kg / 0.9 lb	TMMP 2x170 No. of arms: 2 Width of grip: 170mm / 6.7 inches Effective length of arms: 135mm / 5.3 inches Maximum withdrawal force: 18.0 kN / 4,030 lbf Weight: 1.9 kg / 4.2 lb
TMMP 3x185 No. of arms: 3 Width of grip: 185mm / 7.3 inches Effective length of arms: 135mm / 5.3 inches Maximum withdrawal force: 24.0 kN / 5,380 lbf Weight: 2.5 kg / 5.5 lb	TMMP 3x230 No. of arms: 3 Width of grip: 230mm / 9.1 inches Effective length of arms: 210mm / 8.3 inches Maximum withdrawal force: 34.0 kN / 7,610 lbf Weight: 5.5 kg / 12 lb
TMMP 3x300 No. of arms: 3 Width of grip: 300mm / 11.8 inches Effective length of arms: 240mm / 9.4 inches Maximum withdrawal force: 50.0 kN / 11,200 lbf Weight: 9.0 kg / 20 lb

Part ordering details:
for individual parts of puller

nnn represents specific puller part #

-x is the ordering extension for that particular part

TMMP nnn-1 (1 on diagram) Arm - length TMMP 6 - 120 mm / 4.7 in TMMP 10 - 207 mm / 8.2 in TMMP 15 - 260 mm / 10.2 in	TMMP nnn-2 (2 on diagram) Arm - length TMMP 6 - 220 mm / 8.6 in TMMP 10 - 350 mm / 13.8 in TMMP 15 - 340 mm / 13.4 in
TMMP nnn-3 (3 on diagram) Arm - length TMMP 6 - 370 mm / 14.5 in TMMP 10 - 460 mm / 18.1 in TMMP 15 - 435 mm / 17.1 in	TMMP nnn-4 (4 on diagram) Arm - length TMMP 6 - 470 mm / 18.5 in TMMP 10 - 710 mm / 27.9 inches TMMP 15 - 685 mm / 27.0 in
TMMP nnn-6 (5 on diagram) Spindle with centre nib	TMMP nnn-1K (6 on diagram) Stand, boss, complete set of pins, bolts and link arms (per arm)

Contact us at (214) 238-0493 for full specifications.
